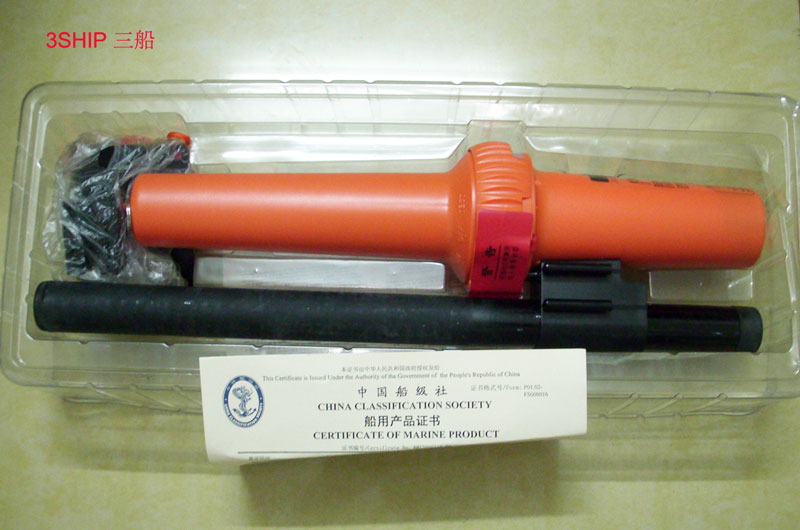

SART(Radar Transponder)




(1)Product Overview:

Search and rescue radar transponder (SART) is a homing device, belong to Global Maritime Distress
and Safety System (GMDSS).

Product performance to meet the relevant international standards, with independent  intellectual property rights,

China Classification Society CCS   (certificate number: FZ12T00011)

Register of fishing vessel of P.R.C. (certificate number: C00001300007).

Functions and features:

1 Navigation radar of search and rescue ship or helicopter detect pulses from the SART ,

       The SART transmitting signal will display  exactly position on radar screen of  search and rescue ship or helicopter

2Crew(survival) with  hand-held SART or distress ship equipped with SART

       will discover rescue ship or helicopter is getting close to them.

3 Utilize X-band small signal detection technique, waveform generation technology,

       High-efficiency power conversion to achieve low power consumption,

       With good electromagnetic compatibility, mature technology, reliable performance.

(2)Technical specifications

  1Receiver and transmitter frequency range9200MHz-9500MHz

  2Antenna polarizationHorizontal polarization

  3Horizontal beam range360°

  4Vertical beam rangeWith respect to a horizontal plane of at least ± 12.5 °

  5Receiver sensitivityBetter than-50dBm

  6Equivalent isotropic radiated power≥400mW

  7Transmit allowable pulse width100μs

  8Receiving prohibit pulse width105μs~110μs

  9Sweep range (linear fm)9200MHZ~9500MHZ

  10Sweep modeSawtooth waveform , positive period7.5μs±1μs ,

                                                                           negative period0.4μs±0.1μs

  11Sweep frequency repetition rateIn the period of 100μs transmit, sweep 12 times

  12After receiving , recovery time of the subsequent triggers≤10μs

  13Response delay time≤0.5μs

  14Temperature Range

         Environment temperature-20+55

         Storage temperature-30+65

  15Case protection gradeIP68

  16Case colorYellow or orange ( selectable)

  17 Compass safety distance50cm

  18Battery life


                  aOperating voltageLithium batteryDC-7.2V, Current13500mAh

                  b )  Standby condition (Only receiver unit):≥ 96h

                  cIn responseSending and receiving):≥ 8h


                  aOperating voltageLithium batteryDC-7.2V, current15000mAh

                  bStandby conditionOnly receiver unit):≥100h

                  c In responseSending and receiving):≥10h

  19Dimension100D× 390Lmm

  20Weightapprox. 1000g
